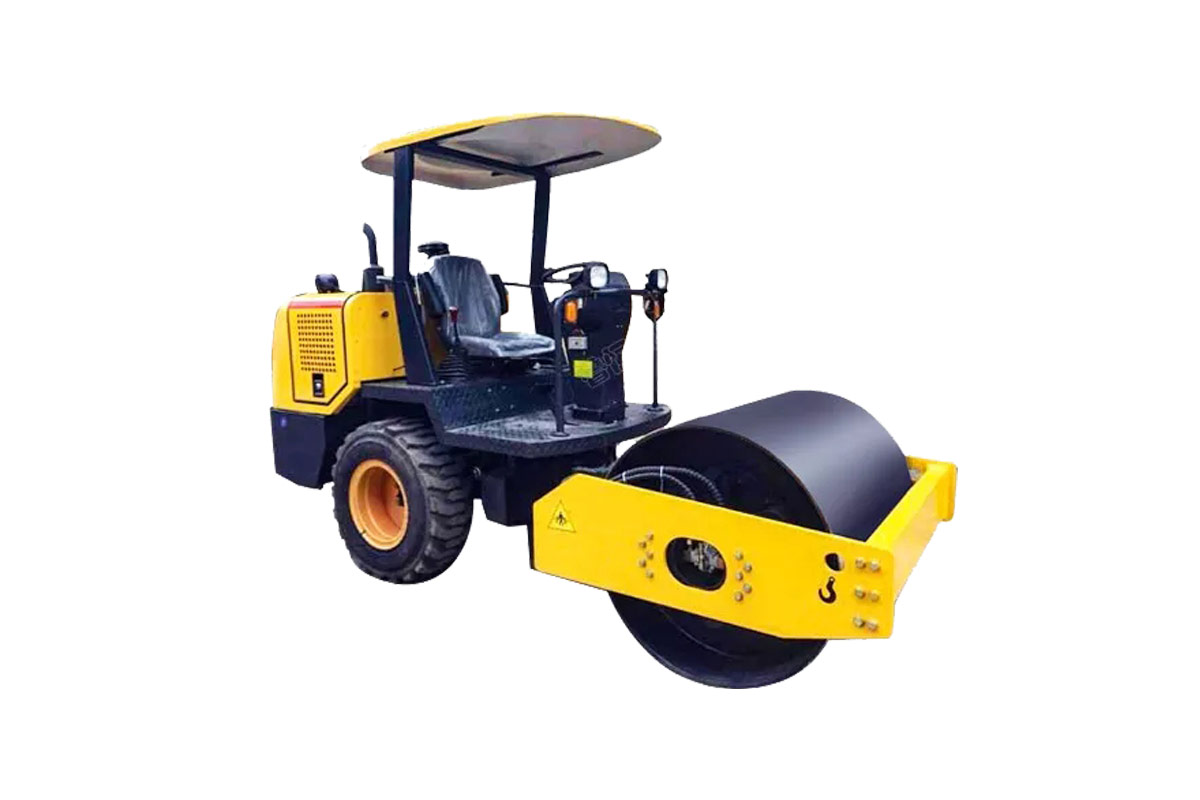

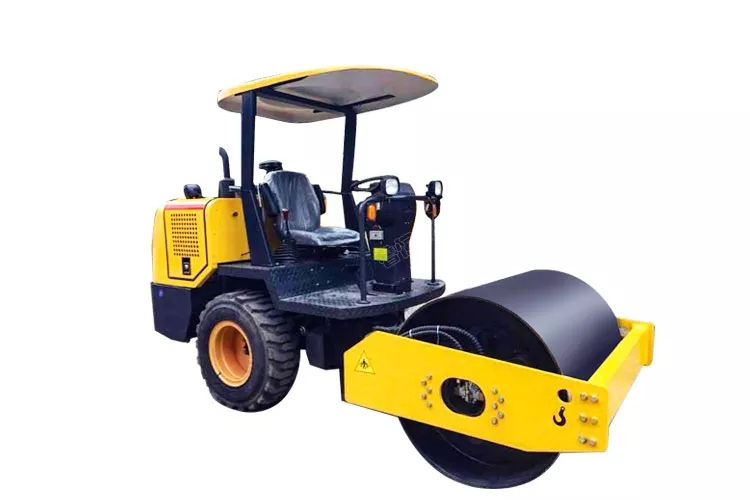

HW-3.5T Single Drum Road Roller

PARAMETERS

Model	HW-3.5T
Working weight (kg)	3500
Exciting force (Kn)	45
Engine model	Changchai Water Cooled 390
Engine power (kw)	28.5
Static line load (N/cm)	57
Walking speed (km/h)	1.95-7.15
Amplitude (mm)	0.6
Vibration mode	Hydraulicsteering,hydraulicvibration,mechanicaldrive
Gradeability (%)	30
Walking style	Rear wheel drive
Vibration frequency (Hz)	70
Start method	Electric start
Dimensions (mm)	3500*1390*2200
Water tank volume (L)	30
Steel wheel size (mm)	φ1000*1200
Hydraulic oil tank volume (L)	60
Drive method	Full hydraulic drive

In the development of the new 3.5T road roller, we have placed special emphasis on enhancing the edge blanking procedure. This advancement eliminates the requirement of using a smaller road roller for the edge banding and compaction process. For starting the machine, you have the option to choose between manual start and electric start. While manual start is recommended, electric start is recommended in colder temperature conditions.

PRODUCT FEATURE

1. Our road roller features a renowned brand engine, ensuring exceptional performance.

2.


2. With a compact work radius, it can efficiently operate in narrow spaces.

3. Equipped with hydraulic vibration, it generates a substantial exciting force.

4. Its elegant design boasts smooth lines and offers excellent resistance to rust and corrosion.
